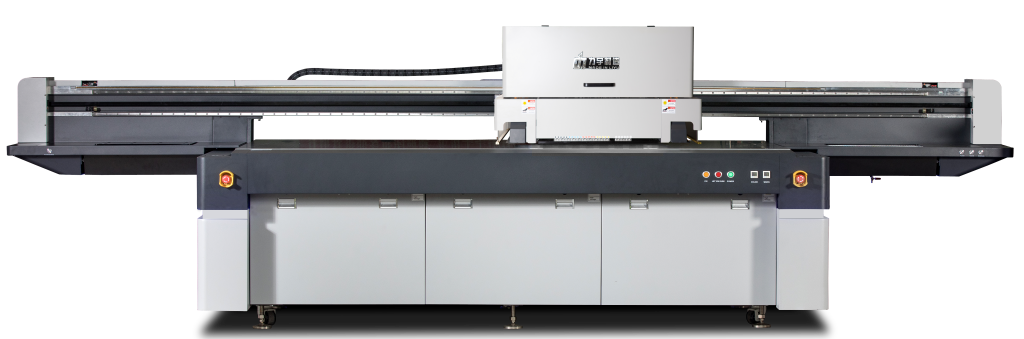

Galaxy F3/F2 UV Flatbed Printer

As a versatile model of LIYU, the Galaxy F3/F2 UV Flatbed Printer features unique handle control that deliver excellent precision and color reproduction to perfectly present your distinctive creativity.


  • Camera positioning (optional)

  • 8-color option

  • High-precision UV technology

1. Multi-configuration Flexibility

   Choose Ricoh, Konica, or Epson print heads based on application needs – from high-definition crafts to high-speed mass production, delivering unmatched versatility to print anything, any way you want.



2. Classic Aesthetic Design

   Sleek lines and ergonomic layout ensure lasting visual appeal and operator comfort, combining style with fatigue-free long-term use.

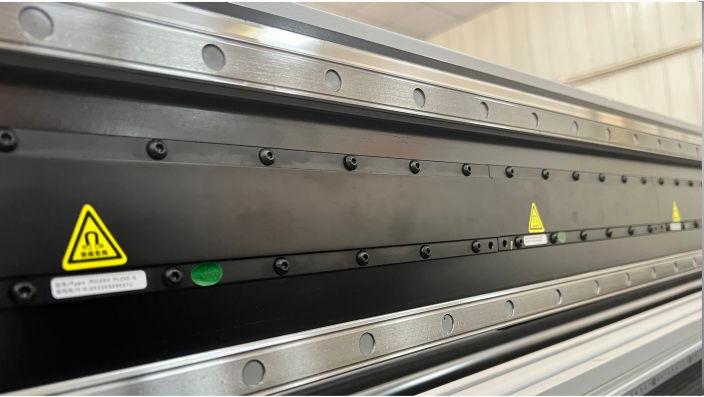

3. High-Rigidity Frame

   Next-generation structure and drive system provide rock-solid stability, maintaining micron-level precision with zero vibration during continuous operation.



4. Honeycomb-Structure Leveling Platform

   Honeycomb structure + multi-point micro-adjustment ensure consistent leveling across large sheets, eliminating ghosting entirely.

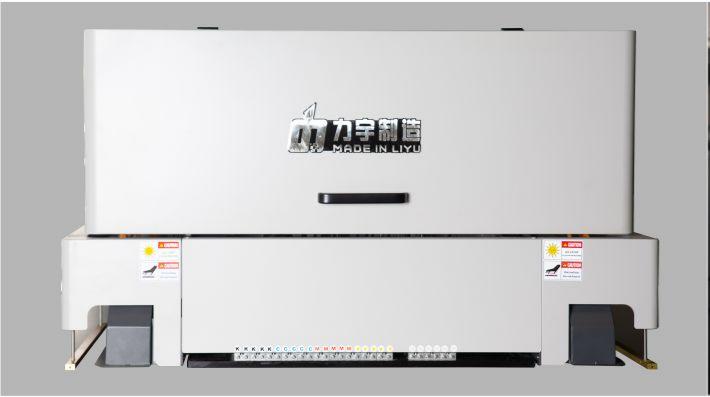

5. Flexible anti-collision carriage

   Instant retraction upon accidental contact protects print heads and UV lamps like a "soft shield", minimizing damage from misoperations.



6. Manipulating Handle

   Handheld remote control = 3-axis movement + zoned adsorption + precise media positioning + safety protection—complex operations simplified at your fingertips.



7. Dual Negative Pressure Ink Supply

   New air-ink path + intelligent dual negative pressure + ink overflow protection, ensuring stable and reliable ink supply.



8. Quick-Detach Adsorption Fan

   Integrated fan design allows quick disassembly and assembly, facilitating customer installation and use.



9. Independent Flash Spray Station

   Automatic flash spray and moisturizing keep print heads "ready at any time", eliminating clogging worries.


Model

KC2512/KC3020

Type of print head

RICOH GEN6

Print head quantity

Use software to adjust the temperature and voltage of the print head

Droplet volume

4.8 pl / 7 pl / 5 pl / 13 pl (variable droplet)

Color profile

CMYKLcLm+White+Varnish

Ink type

UV-LED

Drying device

UV Curing-LED Curing

Flatbed size

2500 mm × 1250 mm/3050 mm × 2050 mm

Printing thickness

100 mm/250 mm (optional)

Printing resolution

2880 dpi/1200 dpi

Maximum printing speed

120 m²h/60 m²h/80 m²h/110 m²h

RIP software

PhotoPrint /Caldera (optional)

Hardware

X-direction driver: Panasonic servo motor / linear motor (optional)

Y-direction driver: ball screw*2 + linear guide*2 + Panasonic servo motor*2



Power supply

230 V(+/-)10%/40 A/50 HZ/60 HZ

Machine 2512 size

635 × 2400 DPI (1 head for 2 colors)
635 × 4800 DPI (1 head for 1 color)

Machine 3020 size

3000 mm × 5800 mm × 1530 mm

Machine weight

1370-2500 kg
