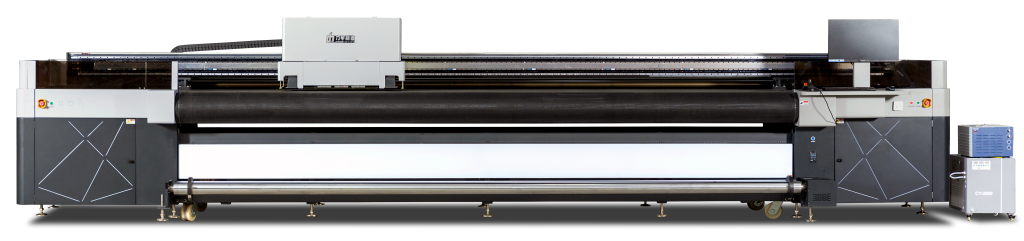

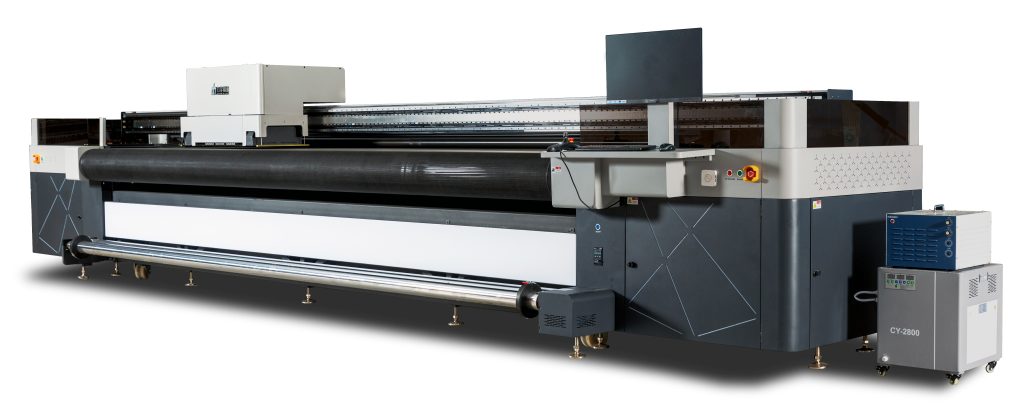

Galaxy H5 UV Hybrid Printer

The H5 UV Hybrid Printer is a heavy-duty model with an wide format, capable of delivering high-speed, high-quality UV printing at an ultra-wide 5.3-meter format.

Single-sided dual-printing technology
10-color option
Fully controllable foot pedal
Control handle
Full-auto guide belt guiding system
Ultra-high-speed UV technology
Variable-frequency vacuum adsorption

More 400-6606-258 Product Manual

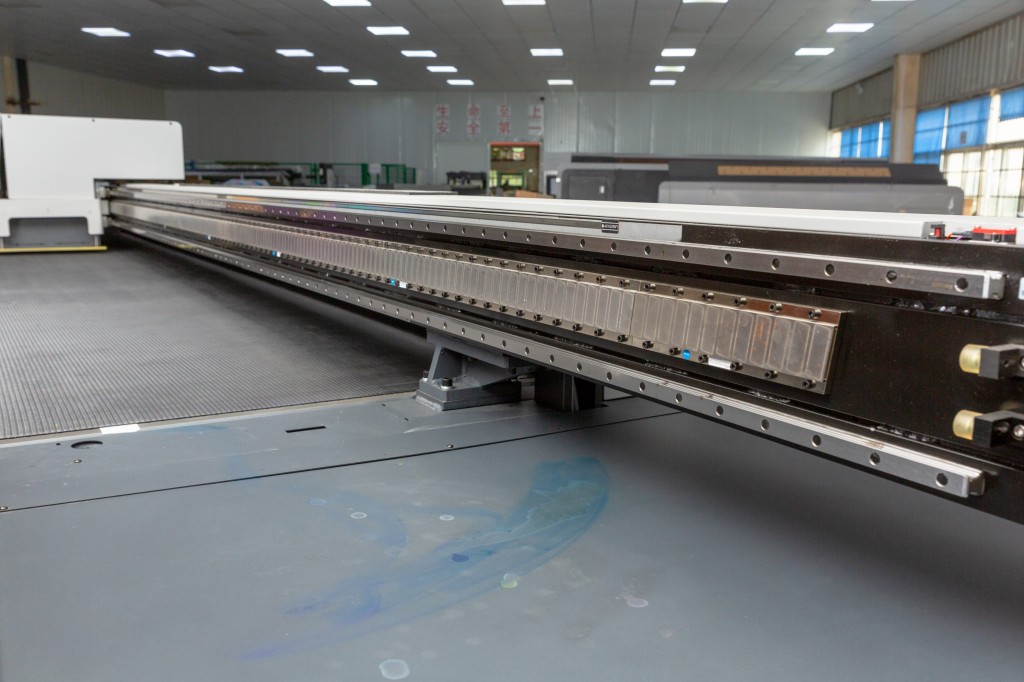

1. Equipped with 32 Konica print heads, this configuration meets various high-speed UV printing requirements;

2. The fully welded frame is equipped with heavy-duty steel beams, linear motors, metal grating, and large-diameter drive rollers, ensuring exceptional structural integrity and continuous printing stability;

3. Independent 6-zone variable-frequency vacuum adsorption function prevents wrinkling during printing;

4. Imported Italian cable carrier system with standard collision avoidance and static elimination technology ensures safe and stable printing;

5. Large-pitch spiral mesh belt with specialized treatment delivers high precision, strength, and uniform adsorption;

6. Proprietary handle and foot pedal operation for effortless and user-friendly printing;

7. The full-auto intelligent guide belt guiding system allows printing long-format materials without deformation or deviation.

Model	DSJ5300
Print technology	Piezo continuous drop-on demand (DOD)
Type of print head	KONICA 6988H/1024A/9888H
Print head control	Use software to adjust the temperature and voltage of the print head
Print head configuration	KONICA Series
Printing width	5.30 m
Maximum printing resolution	600*2880 dpi
Maximum Printing Speed	200 ㎡/h
Ink type	UV ink
Color profile	KCMY (White as optional)/ KCMYLcLm (White as optional)
Ink supply system	Automatic continuous ink supply with vacuum negative pressure
Media absorption	Table vacuum absorption, segmented control
Drying device	LED UV lamp curing
Table pressure	25kg/m²
Package size	827623982100 mm
Machine size	810021001800mm
Machine weight	6 t
Printing interface	PCIE system
Power supply	Main unit: 220 V ± 10% 50 HZ 3300 W; fan: 220 V ± 10% 50 HZ 7800 W; UV lamp: 220V±10% 50 HZ 5000 W
Environmental requirements	Temperature: 15℃ ~ 30 ℃; relative humidity: 40% ~ 80%
RIP software	Photoprint/Printfactory/Caldera

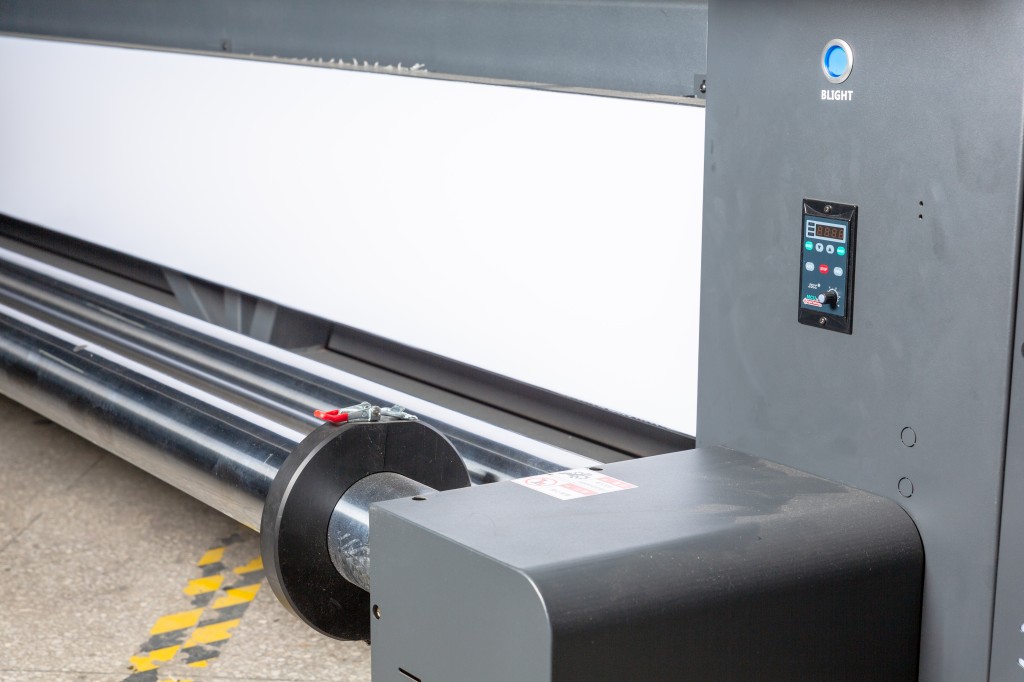

Functional configuration	Independent temperature control for auxiliary ink tank, separated intelligent negative-pressure ink-supply system,human engineering mechanics design, handle control, THK mute guide, foot pedal-assisted loading, double -roll take-up and feeding system, and LED cold light source curing.
Specifications may be updated without prior notice. Anhui LIYU Computer Equipment Manufacturing Co., Ltd. reserves the right of final interpretation.
