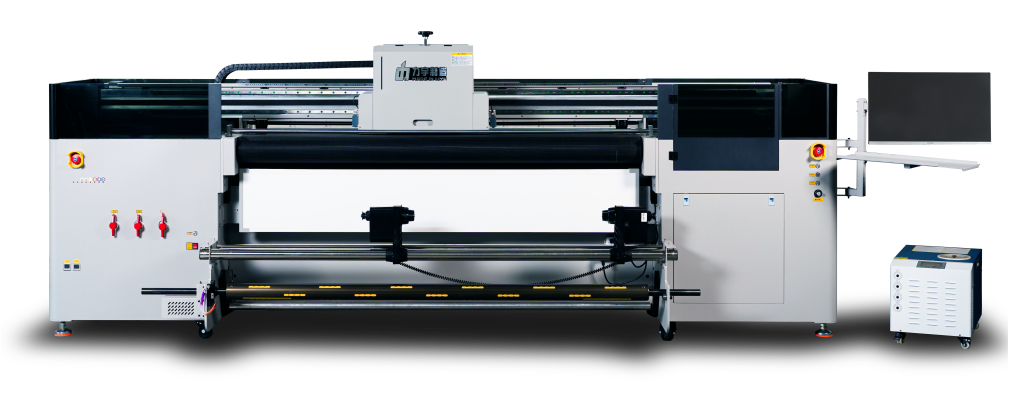

The 1.8-meter UV hybrid printer, compact yet powerful, is the ideal partner for customized projects and diverse applications;
CWC printing technologies
3D texture technology
1. The Starlink series 1.8-meter UV hybrid printer combines a compact, space-saving footprint with a sleek, dynamic design;
2. It is configurable with various high-precision, multi-level grayscale print heads (Epson/Ricoh) to meet personalized printing demands;
3. It delivers comprehensive solutions for high-clarity CWC printing, leather, canvas, and floor mat applications, offering exceptional versatility.
Model | DQS1800 |
Print technology | Piezoelectric inkjet printing technology (DOD) |
Type of print head | EPSON 13200 /RICOH G6 |
Print head quantity | Up to 8 |
Maximum format | 1.8m |
Printing resolution | 720*1200 DPI |
Printing speed | WC: 20 m²/h; full color: 50 m²/h |
Ink type | UV ink |
Color profile | C/CWC/CW/WC/W/C/V |
Ink supply system | Main ink tank, secondary ink box supply |
Media type | Flexible coil media (lamp-box fabric, black and white cloth, self-adhesive vinyl, car body transparent sticker, leather, canvas, floor mat, table mats, etc.), and lightweight sheets |

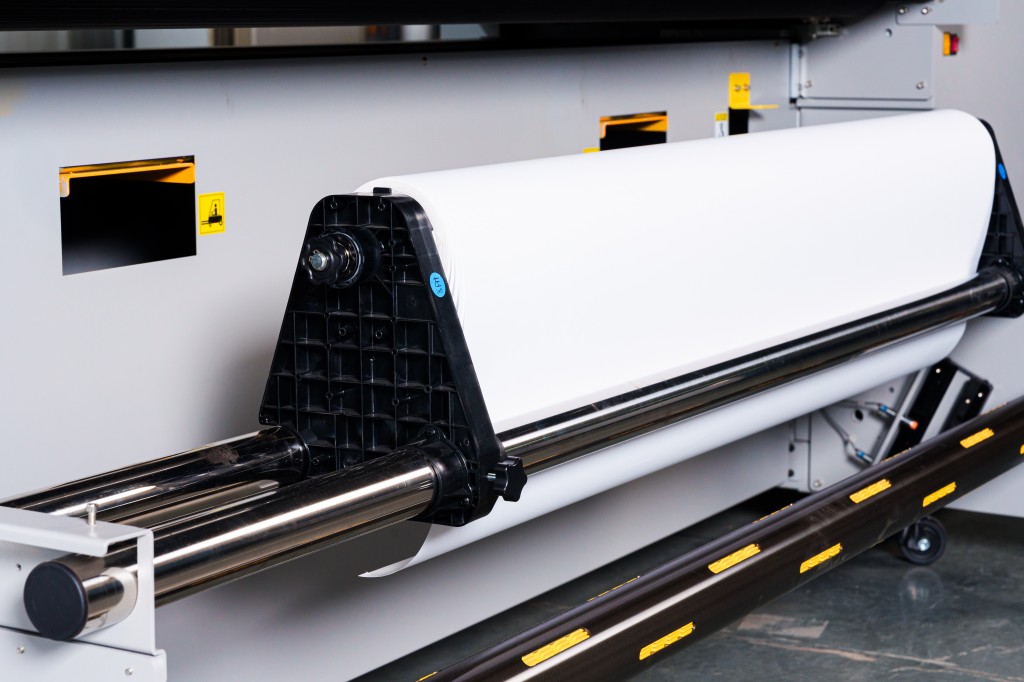

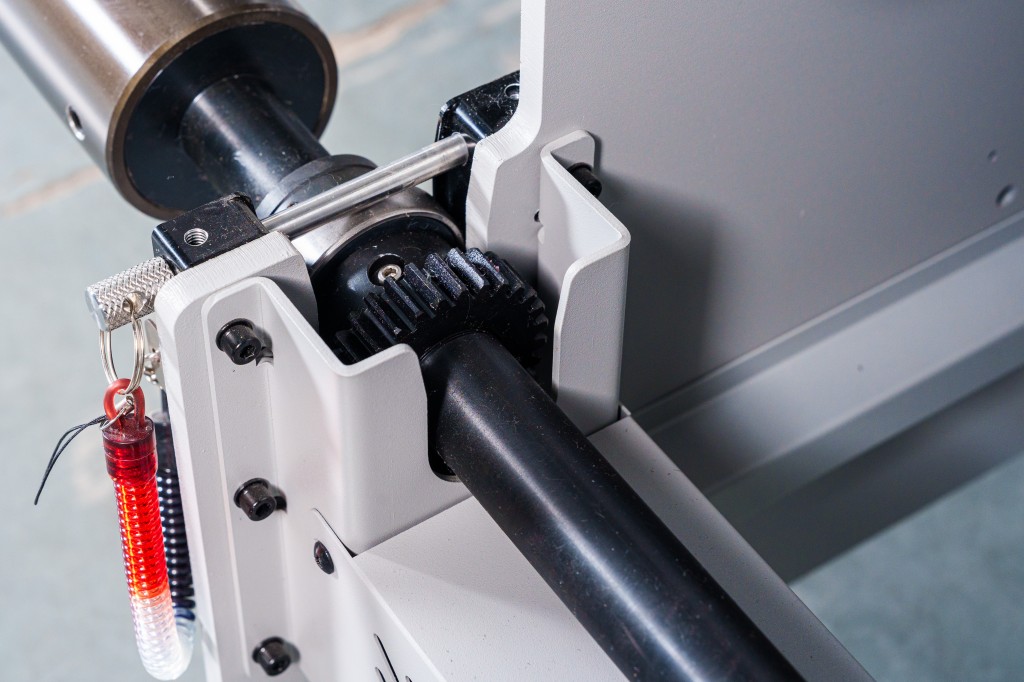

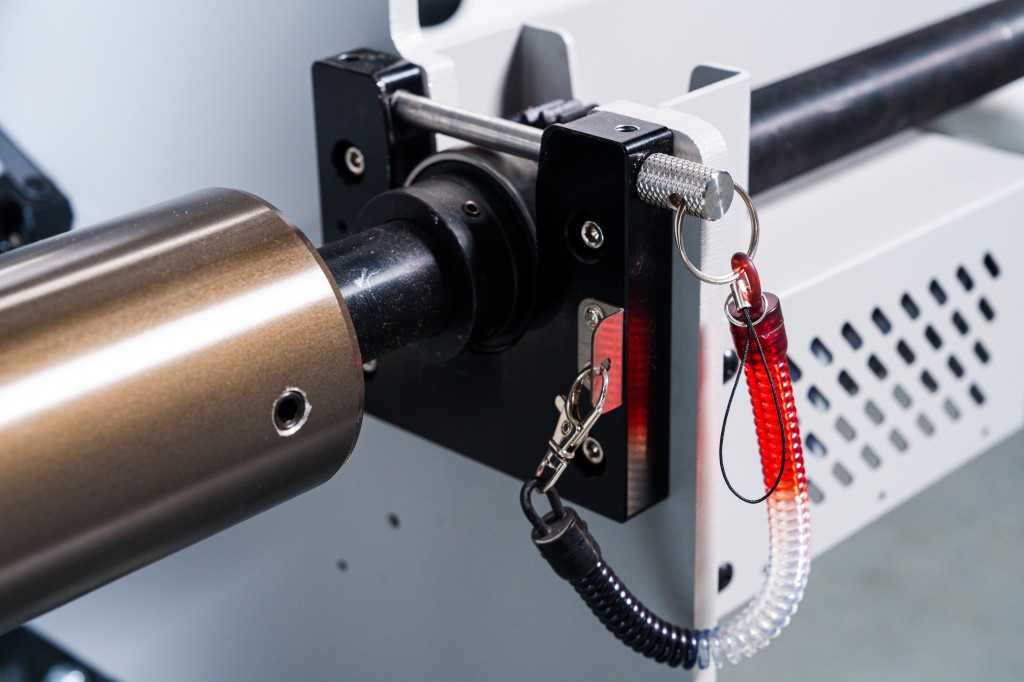

Take-up and feeding system | The standard equipment of an automatic media feeding and take-up system includes an air shaft media feeding system. |
Drying device | UV-LED water-cooled lamp |
Platform width | 500 mm |
Print head height | Adjustable for material height: 2-30 mm |
Table pressure | 50kg/m |
Package size | 3900mm*1150mm*1550mm |
Machine size | 3540 mm * 1500 mm * 1600 mm |
Machine weight | 750 kg |
Printing interface | USB |
Power supply | 220V±10% 50HZ |
Environmental requirements | Temperature: 15℃–30℃; relative humidity: 40%–80% |
